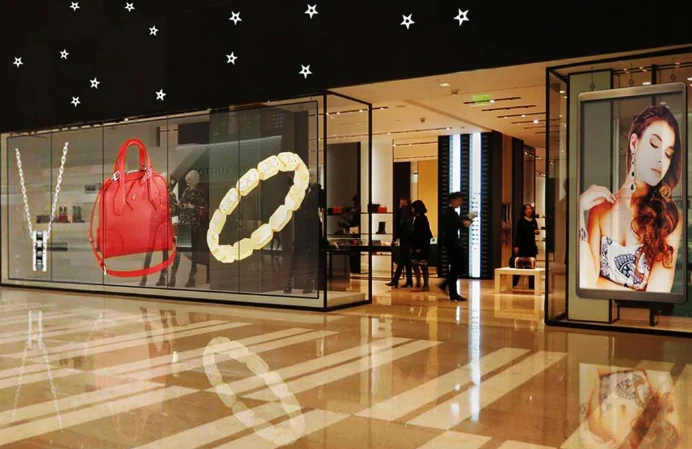

Kisɛ bɛ poroze caman faga ka tɛmɛ baarakɛnafolo kan.
Écrans transparentes bɛ girinyaKilo 3-12/m2 yeani ka boli ka yaala-yaalaA janya ye milimɛtɛrɛ 10 ye. Laadalata ekranw ni kabiniw bɛ girinyaKilo 30-50/m2ani ka sumani kɛ50-150mm kɔnɔna na. Ciyɛn boon min finɛtiri fɔlɔw bɛ yen tuma caman na, o tɛ se ka laadala LED girinya dɛmɛ ni nɛgɛ barikalan tɛ min bɛna ciyɛn lisi tiɲɛ. Écrans transparentes bɛ sigi ka ɲɛsin kɔnɔna galasi yɔrɔw ma, ni jɔli baara tɛ kɛ. A sigili bɛ tile caman ta sanni ka kalo caman ta.
Fiyeere cakɛda dɔ min kɔnɔna na, galasi magasinsin 500 bɛ yen, o ye ɛkran jɛlenw labɛn ɛntɛrinɛti bɛɛ kɔnɔ, k’a sɔrɔ u ma maga sow jɔcogo la. K’a ɲini k’o ɲɔgɔn kɛ ni laadala ɛkranw ye, o bɛna kɛ sababu ye ka ladamu sigicogo injiniyɛri kɛ yɔrɔ bɛɛ la-poroze hakɛ min bɛ laɲini fanba faga sanni u ka se baarakɛnafolo laban ma.
An bɛ ka min suma ɲɔgɔn na tiɲɛ na
San tan caman kɔnɔ, laadala LED ekranw tun bɛ yɔrɔ bɛɛ-stadi jatebɔlanw, feerekɛyɔrɔ taamasiyɛnw. U tun bɛ baara kɛ ka ɲɛ: kulɛri jɛlenw, minnu bɛ tiɲɛ, u bɛ se ka da u kan. Nka u nana ni jagokɛcogo ye mɔgɔ si tun tɛ se ka ɛntɛrinɛti injiniyɛri kɛ a lamini na: ɛkran bɛɛ tun ye kogo ye tigitigi. Yeelen datugulen, yecogo datugulen, ye yɔrɔ ta.
LED transparent bɛ o equation (daɲɛ) wuli. Fɛn dilannen suguya wɛrɛw bɛɛ lajɛlen.
Retail application de bɛ ka bonya fanba bila sen kan sisan. Butigi finɛtiriw kɛra fɛn fɔlɔw ye tuma bɛɛ. I b’a fɛ ka fɛnw jira ani ka laseliw kɛ waati kelen na. Laadalata LED bɛ sugandili-ekran walima finɛtiri wajibiya. LED transparent bɛ o sugandili bɔ yen pewu. Kunnafonidila minnu bɛ fɛnw laseli kɛ ani ka jagofɛnw ye waati kelen na. Nike ni Zara flagship yɔrɔw ye nin jateminɛ joona. Nin baarakɛcogo kelen in b’a ɲɛfɔ mun na LED jɛlen bɔra nisɛ ɲinini na ka taa jago jateminɛba la san duuru kɔnɔ.
U bɛ jɔ cogo min na
Laadalata ekranw bɛ fɛn kelen de bila jɔyɔrɔ fɔlɔ la: ka pixel caman siri yɔrɔ dɔ la. LED puce-niSMD (Surface Mount Device) ., COB (Chip min bɛ kurun kɔnɔ) ., walima mɔgɔkɔrɔbawDIP (Dual In-layini Pake) .format-ka pake kosɛbɛ PCB substrates kan. Maskɛ nɛrɛma walima epoyi fini bɛ fɛn bɛɛ datugu walasa ka lamini yeelen minɛ ani ka danfara bonya.
O nɔfɛkow bɛ kuma u yɛrɛ kan. COB pannew ye danfara hakɛw gosi sanfɛ20,000:1. Pixel pitchw bɛ taa ka ɲɛ i n’a fɔP0,6mm yeka ɲɛsin 4K ni 8K jiralanw ma. Kɛnɛma unitéw bɛ push10.000 nit.
Nka laadala LED-ɛkranw bɛ yeelen 100% bali ka tɛmɛ u fɛ. U ye kogow ye nizɛrikan na. A ka ɲi kosɛbɛ nɔ bilali la, a ka jugu fɛn o fɛn ma i mago bɛ yɔrɔ min na ka tɛmɛn.

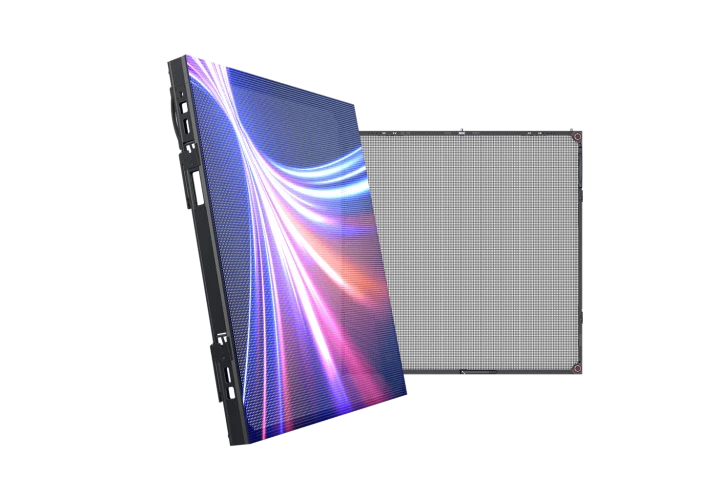

Écrans transparentes bɛ daminɛ ka bɔ a laban fan dɔ fɛ. Sani u ka pixel jate caya, u dabɔra yeelen bilali lamini na k’a sɔrɔ ja jogo bɛ Sɔn. Fɛɛrɛba saba bɛ yen.Strip-basigi dilancogoaw bɛ LED puwɛntiw bila aliminiyɔmu walima PCB sɛrɛkili fitininw kan ni yɔrɔw ye u ni ɲɔgɔn cɛ-yeelen bɛ tɛmɛ yɔrɔw fɛ, ka 60-90% kɛnɛya gosi ka kɛɲɛ ni yɔrɔjan ye.Filimu-based versionsaw bɛ mikro-LEDw don fɛn jɛlenw na minnu ka fin kosɛbɛ (u janya bɛ se milimɛtɛrɛ 4 ma, u girinya bɛ se kilogaramu 3-6 ma/m2) minnu bɛ nɔrɔ ka ɲɛsin gilasi kɔrɔw ma.Glass-dilancogo jɛlenwsandwich LED fɛnw bɛ gilasi fila cɛ, ka architectural glass tigɛli kɛ jiralan ye.
Fɛnɲɛnɛma caman bɛ sɔrɔ sɛrɛkiliw ni ɲɔgɔn cɛ, o kɔrɔ ye ko yeelen caman bɛ tɛmɛ, nka pixel (piksɛl) ka dɔgɔn mɛtɛrɛ kɛrɛnkɛrɛnnen kelen na. Écran transparent bɛɛ ye bɛnkan ye nin fɛn fila ninnu cɛ.

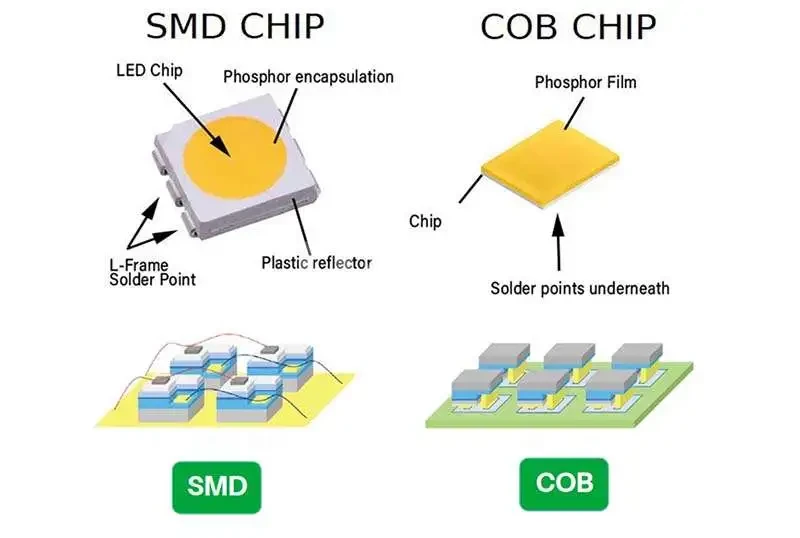

LED ka pake suguyaw
SMD-Surface Mount minɛn's bɛ yen kabini san tan caman. Puce kelen-kelen minnu bɛ plastiki so misɛnninw kɔnɔ, minnu bɛ solder PCBw kan. Fɛnɲɛnɛma in bɛ tilennen, o de ye a nafa ye tigitigi. Cakɛdaw kɔgɔlen don, fɛɛrɛtigiw b’a baaracogo dɔn, wa ni LED kelen sara a bɛ se ka ɲɔgɔn falen-falen k’a sɔrɔ a ma modulu bɛɛ bila a nɔ na. Nin ye LED fɛɛrɛ ye min sɛgɛsɛgɛra kosɛbɛ ani min bɛ se ka da a kan kosɛbɛ: a tɛ tigɛ-, a bɛ baara kɛ tuma bɛɛ, a musaka ka dɔgɔ-a ka ladon. Danfara sigilen bɛ a lamini na1,200-1,800:1. Unit fanba bɛ mɛn fo ka selɛrɛ 50 000 kɔnɔsanni yeelen ka jigin kosɛbɛ. Fɛn o fɛn P1.2 walima min ka gɛlɛn, SMD bɛ to sugandili daminɛ na kun ɲuman kosɔn.
COBye yɔrɔ ye fɛnw bɛ diya{0}}ani ka sɔngɔ gɛlɛn sɔrɔ yɔrɔ min na. Chip on Board bɛ tɛmɛn plastiki so kelen-kelen bɛɛ kan pewu. LED puce caman bɛ sigi ka ɲɛ substrat kan, o kɔfɛ, u bɛ datugu ni resin layɛrɛ kelen ye. Ɛntɛrinɛti nafa ka bon ka bɔ yen : funteni bɛ jɛnsɛn ka ɲɛ siɲɛ 3 ɲɔgɔn na (plastiki so si tɛ funteni minɛ), danfara bɛ pan ka tɛmɛ20,000:1(o yɔrɔ kelen bɛ lamini yeelen minɛ ka ɲɛ), wa a si hakɛ bɛ tɛmɛ o kanlɛrɛ 100 000 ye. O ye sugandi kelen ye min bɛ se ka kɛ ultra-fine pitchw la P1.0 duguma. Jagokɛcogo : ni fɛn dɔ ma ɲɛ, modulu bɛɛ bɛ fɛn caman cili wajibiya at$200-300 ye ko kelen-kelen bɛɛ la. Wa, musaka min bɛ kɛ ka kɔn o ɲɛ, o bɛ boli ka tɛmɛ o kan kosɛbɛ. Fɛnɲɛnɛma in bɛ bɛn kunnafonidilanw ma ani tɔnba sigidaw ma minnu ka bon-. O bɛ wari bilali kojugu jira lotɛli dɔ ka mɔgɔw ladon yɔrɔ la.

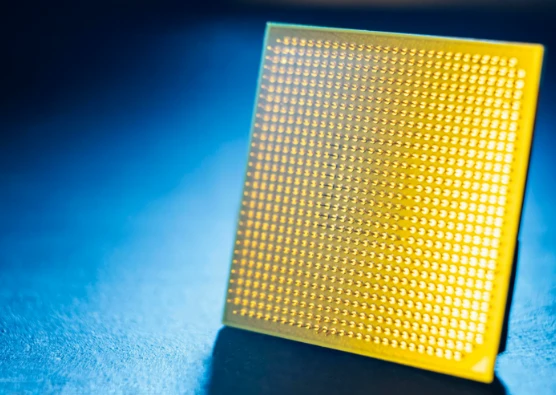

O kɔ fɛ, a bɛ yenGOB-SMD ni lakanani fini ye. Glue ka kurunba kɔnɔ. Tech underlying kelen, nka ni layer optique kola ye min bɛ LED surface datugu. O bɛ muɲuli ɲuman di farikolo-ɲɛnajɛ ni nɛnɛ ma ka sɔrɔ ka SMD dilan sɔrɔko mara. Integratɛri dɔw b’a laadi kosɛbɛ jagokɛlaw ka feerekɛyɔrɔw la minnu ka ca -. Dɔ wɛrɛw b’a jate ko a man kan baara fanba la. Jateminɛw bɛ danfara ka kɛɲɛ ni baarakɛcogo kɛrɛnkɛrɛnnenw ye.
Écran transparent fanba bɛ baara kɛ ni strip-based SMD mounting modifié walima substrat transparent kɛrɛnkɛrɛnnenw ye. Premium model dɔw bɛ baara kɛ ni COB-transparent hybride fɛɛrɛw ye.
Specs minnu nafa ka bon tiɲɛ na (ani minnu tɛ nafa sɔrɔ) .
Specs bɛɛ man kan ni jateminɛ kelen ye.
Kɛnɛyako
Kɛnɛyako bɛ daminɛ50% ka se 95% ma .ekran jɛlenw kan ka kɛɲɛ ni u labɛncogo ye. Laadalata sigilen bɛ 0%-o ye u ka baara kɛcogo jɔnjɔn ye. Pixel (piksɛl) fɔcogo gɛlɛnw kɔrɔ ye ko yɔrɔ caman bɛ LED sɛrɛkiliw ni ɲɔgɔn cɛ, yeelen caman bɛ tɛmɛ. I ka P9.26 digi, i bɛ tɛmɛ 80% jɛlen kan, nka o waati la i bɛnnen don dɔrɔn-sow ɲɛfɛla belebelebaw filɛli ma-sow ɲɛfɛla minnu bɛ ye ka bɔ nbɛda fan dɔ fɛ.
Ŋaniya
Resolution ye laadala LED ka sebaaya jɛlen ye. COB bɛ taa ɲɛ i n'a fɔP0.4. Standard SMD laadala ekranw duguma ka bɔ lamini naP1.0-P1.2. Écrans transparentes sisan max out lamini naP2.6. AV integrateur fanba bɛ baara kɛ ni jatebɔ teliya ye: ka pixel pitch (milimɛtiri la) tila ni 0,3 ye walasa ka filɛli yɔrɔ lafiyalen fitinin sɔrɔ mɛtɛrɛ kɔnɔ. O la, P3.9 transparent screen mago bɛ mɛtɛrɛ 13 ɲɔgɔn na sanni pixelation ka tunun. P1.2 laadala ɛkran bɛ ye ka ɲɛ ka bɔ mɛtɛrɛ 4 dɔrɔn bɔ kɛnɛma.
Yeelen
Ni aw bɛ baara kɛ ni so kɔnɔ, LED jɛlen bɛ bɔ cogoya la800-2500 nit. Laadalata so kɔnɔ ekranw bɛ boli600-1500 nit-o cogo la transparent tiɲɛ na, a bɛ dan sɔrɔ sigicogo caman na. Butigiw mago bɛ punch caman na: a ka c’a la, ekran jɛlenw bɛ boli4.000-5.500 nit. Tile yeelen tilennen ye yɔrɔ ye laada bɛ fanga sɔrɔ yɔrɔ min na hali bi-u bɛ gɛlɛya5.000-10.000 nitk’a sɔrɔ ɛkran jɛlenw minnu bɛ gilasi kɔfɛ, olu bɛ kɛlɛ kɛ nit 6000 duguma.
Danfara ni Kulɛri
Danfara ni kulɛri-laada LED de bɛ fanga la yan, wa o tɛna Changé. Maskɛ nɛrɛma dilanni bɛ lamini yeelen minɛ, ka nɛrɛmugu jugumanw bɔ. COB fɛɛrɛbɔ bɛ laboratuwari-sumanikɛlanw danfara hakɛw bila sanfɛ20,000:1. Laadalata ɛkranw bɛ nɛrɛ jira yɔrɔ minnu na, ɛkran jɛlenw bɛ fɛn o fɛn jira u kɔfɛ. Lajɛba so, bolifɛnw jɔyɔrɔ, tile yeelen. Ɛntɛrinɛti hakɛ si tɛ nin labɛn-a bɛ yeelen bila ka tɛmɛ.

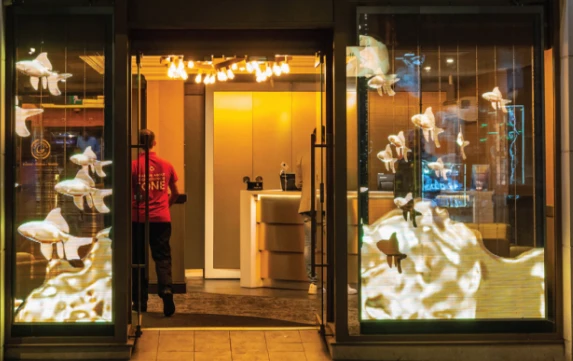

I bɛna min sara tiɲɛ na
Ninnu ye FOB Shenzhen sɔngɔw-jigin musakaw ye Ameriki Woroduguyanfan na walima Erɔpu a ka c’a la ka fara 15-25% kan. Sɔngɔw bɛ wuli ka bɔ ɲɔgɔn na; LED puce musakaw jigira 12% ɲɔgɔn na Q1 ni Q3 2024. cɛ.
LED jɛlen ye
Donda-nivo fan-bɔli pannew bɛ boli$580-950/m². Mid-range front-emitting-jagokɛyɔrɔ fanba bɛ jigin yɔrɔ min na- sigilen bɛ yɔrɔ min na$1,100-2,400/m². Transparent film LED bɛ taa a fɛ$1,150-2,800/m². Holographie transparent jiralanw bɛ push$1,400-3,200/m².
Laadalata LED
Kɛnɛma SMD (P4-P10) de ka dɔgɔn kosɛbɛ$150-400/m². So kɔnɔ SMD (P1.5-P3) bɛ boli$300-800/m². Fine-pitch COB (P0.9-P1.2) bɛ gosi$1,000-2,500/m². Ultra-fine COB (P0.6 ani duguma) bɛ daminɛ ni$3,000+/m².
Installation (dadon) kɛlika ɲɛsin LED jɛlen ma a ka c’a la, a bɛ boli $200-500/m2-ka ɲɛsin a jiginni ma gilasi kɔrɔlen kan. Laadalata LED sigili bɛ $500-2,000/m2 kɛ ni i ye jateminɛ kɛ jɔli wajibiyalenw na. O yɔrɔ de la, girinya danfara min kofɔra daminɛ na, o bɛ jira baarakɛnafolo kɔnɔ.
San o san fanga musakaw100m2 sigili kan min bɛ baara kɛ sanga 12 kɔnɔ don o don : a bɛ se dɔrɔmɛ 3000-4500 ma kɛnɛyako la, dɔrɔmɛ 5000-7500 laadalako la. Écrans transparentes bɛ 30-40% dɔgɔya fanga dɔgɔyalen LED puwɛntiw sama mɛtɛrɛ kɛrɛnkɛrɛnnen kelen na, nɛnɛ pasif sanni fiɲɛbɔ active.
Kɔnɔkow dabɔlibɛ fɛn wɛrɛ fara a kan mɔgɔw bɛ ɲinɛ min kɔ. Ɲɛjirali jɛlenw mago bɛ kɔnɔkow la minnu dabɔra kɔkanna jɛlenw kama-yɔrɔ nɛrɛmaw bɛ jira ka tɛmɛ i n’a fɔ kɛnɛya.
Installation et Maintenance Tiɲɛni
LED ɛkran jɛlenw bɛ sigi galasi yɔrɔw kan k’a ɲɛsin u ma ni nɔrɔlanw ye, ni magɛnni ye, walima ni masinw ye. Nɛgɛ jɔcogo tɛ yen min bɛ kɛ baara fanba la. Waati bolodacogo: tile fo dɔgɔkun.
Laadalata LED ekranw mago bɛ dɛmɛnanw na minnu bɛ u yɛrɛ di, girinya doni jatew, fiɲɛbɔ doni sɛgɛsɛgɛli kɛnɛma kama, so jɔli yamaruyaw tuma caman. Waati bolodacogo: dɔgɔkun fo kalo.
Ladonni fana bɛ baara kɛ cogo wɛrɛ la. Écrans transparentes bɛ baara kɛ ni modular strip/panel replacement ye. Yɔrɔw ka nɔgɔn fo ka se ka kɛ -tɛkinikɛla kelen ka baara kama. Laadala SMD ɛkranw bɛ sira di LED kelen-kelen bɛɛ cili ma nka u mago bɛ fɛɛrɛtigi setigiw la ni soldering precision-$10-15 ye ko kelen-kelen bɛɛ la. Laadala COB ɛkranw bɛ modulu-nivo caman cili wajibiya $200-300+ dilanko kelen-kelen bɛɛ la, hali ni dɛsɛw tɛ kɛ tuma caman na.
U kelen-kelen bɛɛ bɛ yɔrɔ min na
A jɛlen don ko porozɛ dɔw bɛ bin kanpaɲi kelen kɔnɔ.
LED transparent ye se sɔrɔ:Glass rido kogo sow minnu ɲɛda bɛ kɛ kunnafonidilanw ye k’a sɔrɔ u bɛ fɛn dilanni to a cogo la. Sannikɛyɔrɔw kɔnɔna na ani galasi yɔrɔw. Ɲɛjiralisow ni misew bɛ kunnafoni nimɔrɔmaw layɛrɛ jiracogo farikolomaw kan. Mobili jirayɔrɔw. Sɛnɛfɛnw ni ko kɛlenw kɔkankow, ɲɛnajɛlamɔgɔw bɛ bɔ yɔrɔ minnu na ɛkranw fɛ.

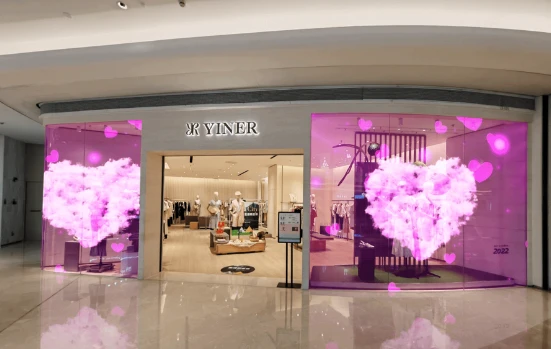

Laadalata LED bɛ se sɔrɔ:Kɛnɛma piblisite pankarti minnu mago bɛ yeelenba la tile tilennen kɔrɔ. Stade jirali bɛ 50+ mɛtɛrɛw la yɔrɔ min na pixel fine pitch tɛ nafa sɔrɔ. Broadcast studio ani control rooms yɔrɔ minnu na kulɛri tiɲɛni tɛ -negosiable ye. Konsɛrɛ ɛkran kunbabaw minnu bɛ mɛtɛrɛ kɛrɛnkɛrɛnnen kɛmɛ caman datugu. Transportation hub kunnafoniw bɛ jira yɔrɔ minnu na kɛnɛya tɛ foyi fara a kan.
Juman jumɛn?
Yala gilasi bɛ o ko la, i b’a fɛ ka min mara wa? Yala yeelen dabɔlen nafa ka bon yɔrɔ baara cogo la wa? Yala o jɔli bɛ se ka kilo 30-50/m2 minɛ wa? Lajɛ yɔrɔ min bɛ kɛ cogoya la, o ye mun ye? Yala baarakɛnafolo ka kan ka jatebɔ kɛ structurel engineering kan wa?
Porozɛ suguya min bɛ ka bonya, n’o bɛ tali kɛ gilasi jɔli ni yeelen nafama na, LED jɛlen jiginna ka bɔ fɛɛrɛ wɛrɛ nafama na ka taa jateminɛ kɛcogo kɔrɔ la. Fɛn tɔw bɛɛ kama-kɛnɛma pankartiw, kunnafonidilanw, ntolatanyɔrɔw jiralanw-laada LED bɛ to a tun bɛ cogo min na tuma bɛɛ tigitigi: a sɛgɛsɛgɛra, a bɛ yeelen bɔ, a musaka ka dɔgɔ, wa a tɛ ye pewu.
