Batiri min bɛ wele ko Electronic Shelf Label Battery Replacement: A si hakɛ, a musakaw ani a ka selilɛri ɲuman sugandili

Nin gafe in bɛ ɲɛnamaya jateminɛw di aw ma ka kɛɲɛ ni ko kɛlenw ye, musaka kɛcogo ɲuman min bɛ kɛɛntɛrinɛti kan etajɛri sɛbɛnwbatiri caman cili sɛgɛsɛgɛli la, ani seli suguya fila minnu ka ca kosɛbɛ - olu sangali jɛlen walasa aw ka se ka ladonni boloda sani a ka kɛ gɛlɛya ye.

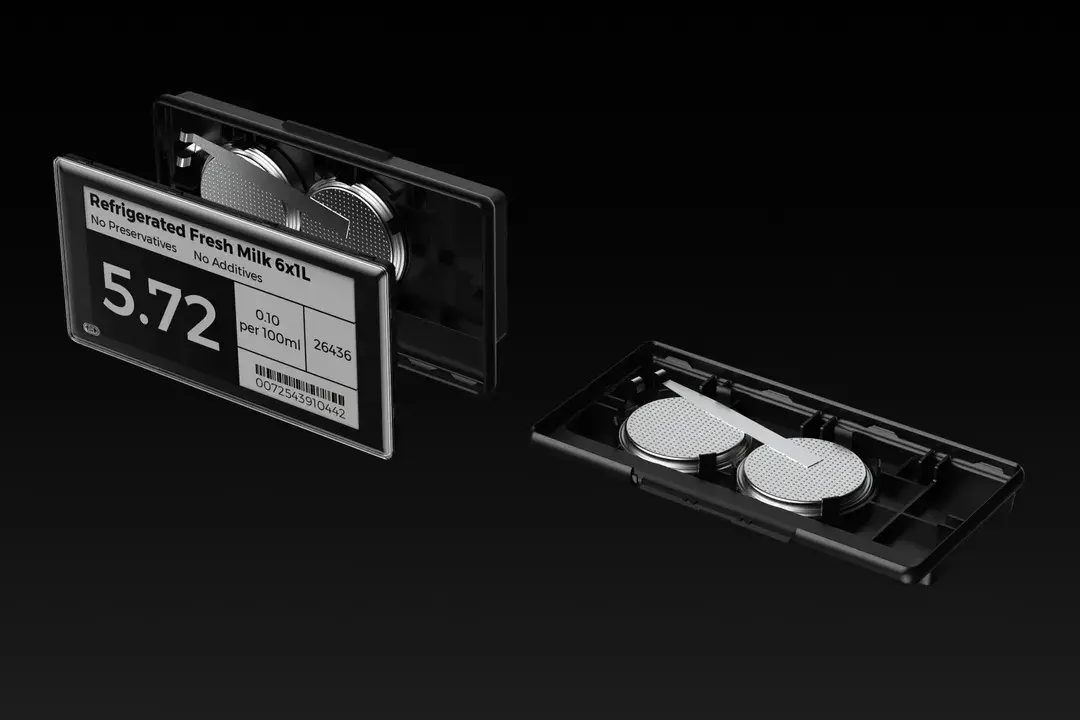

1. Mun bɛ ESL fanga di ani mun na batiriw bɛ mɛn ten

E-paper jiracogo fɛɛrɛye sababu jɔnjɔn ye ESL batiriw bɛ mɛn san caman kɔnɔ sanni ka tile caman kɛ. A tɛ i n’a fɔ LCD, e-ink screen bɛ fanga sama dɔrɔn ni ja b’a Changé. Ni sɔngɔko kura dɔ banna, jiralan bɛ o ja minɛ fo waati dafalen ni fanga zeru ye. O zeru-idle-draw jogo de bɛ warijɛ selilɛri fitinin kɛ fanga sɔrɔyɔrɔ ye min bɛ se ka da a la waati jan kɔnɔ.

Batiri minnu bɛ kɛ, olu ye litiyamu manganɛsi gazi (Li-MnO2) warijɛ selilɛriw - CR seriyali ye. U bɛ 3V bɔli sabatilen di ani u bɛ bɔnɛ u ka sara la min tɛ 1% bɔ san kɔnɔ ni u tɛ baara kɛ, ka kɛɲɛ ni fɛn dilannikɛlaw ka fɛn dilannenw ka ɲɛfɔli sɛbɛnnenw ye (Energizer CR2450 kunnafonisɛbɛn). Modeli saba bɛ baarakɛcogo fanba ɲɛfɔ:

• CR2032 ye- 220mAh, a cɛmancɛ ye 20mm ye. A bɛ bɛn labeli misɛnninw ma (1,5"–2,9"). A ka fisa ka kɛ sigidaw la minnu ka dɔgɔn.

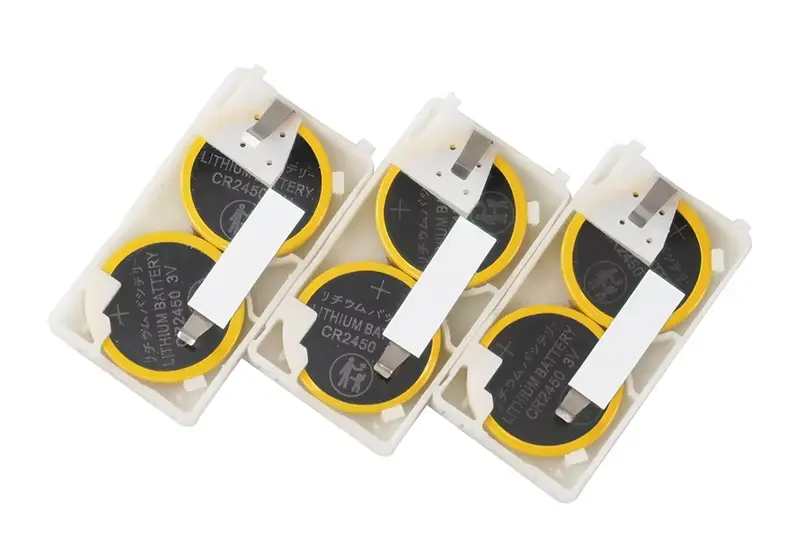

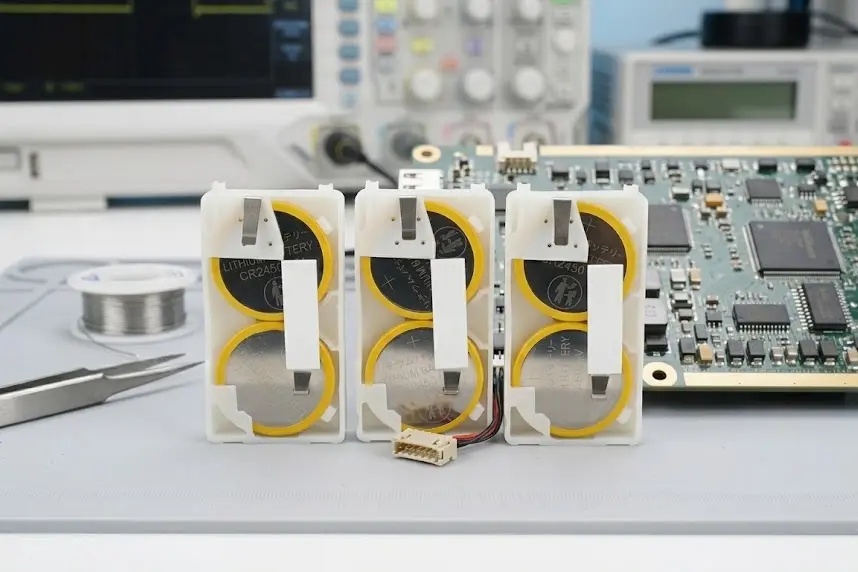

• CR2450 ye- 550mAh, a cɛmancɛ ye 24,5mm ye. Sugandili jɔnjɔn min bɛ kɛ ka ɲɛsin4.2"ka se 7,3" taamasiyɛnw ma feerelikɛyɔrɔ fanba la.
• CR2477 ye- 1000mAh, a cɛmancɛ ye 24,5mm ye, a janya ye 7,7mm ye. Baara bɛ kɛ ni -format label belebelebaw ye, cakɛda nɛnɛma yɔrɔw la, walima high-update-frequency deployments.

Nafama sani i ka komandi kɛ:ESL sow dilannen don selilɛri cogoya kɛrɛnkɛrɛnnen kelen kama. Aw ye modeli min bɛ bɛn aw ka fɛnɲɛnamafagalan feerela ma, aw ka o dafa sani aw ka fɛn wɛrɛw san - chassis bɛɛ tɛ min bɛ sɔn CR2450 ma, o tɛna bɛn CR2477 ma farikolo la.

2. ESL batiriw bɛ mɛn tiɲɛ na waati joli kɔnɔ?

Ka faamuyali sɔrɔESL sitɛmuw bɛ baara kɛ cogo min nafanga hakɛ la, fɛn saba bɛ fɛn caman sɛmɛntiya fɛn caman na, i bɛna fɛn minnu ye baarakɛcogo lakikaw la.

Update frequencyde ye fɛn ye min bɛ fanga la. Sɔngɔko gɛlɛya bɛɛ bɛ arajo sans fil kunu ani ka jiralan ja kokura - fila bɛɛ bɛ kuran sama. Label min bɛ ladamu siɲɛ kelen tile kɔnɔ, o bɛ baara kɛ ni labeli min bɛ ladamu siɲɛ tan tile kɔnɔ san kɔnɔ, o tilayɔrɔba dɔ de dun.

Kumaɲɔgɔnya protocolbɛ nɔ bila arajo bɛ to baara la waati hakɛ min na cikan kelen-kelen bɛɛ la. BLE 5.0 bɛ kunun waati kunkurunnin kɔnɔ ka segin sunɔgɔ la a bɛ se ka fɔ ko o yɔrɔnin bɛɛ, o b’a to a ye batiri-fɛɛrɛ ye min bɛ baara kɛ ni a ye kosɛbɛ. Sub-GHz RF bɛ kogo doncogo ɲuman di nka a ka c’a la, a bɛ arajo to baara la ka mɛn dɔɔnin kurayali cycle kelen kɔnɔ. Sanga caman bɛ ɲɛfɔ an ka sɛbɛn danfaralen kɔnɔ min kanBluetooth ni Wi-Fi ni Sub-GHz ESL.

Lamini funtenibɛ dɔ bɔ seko sɔrɔli la funteni dɔgɔyalen na - min ɲɛfɔlen don dakun nata kɔnɔ.

Tablo min bɛ duguma, o bɛ ɲɛfɔli kɛ ɲɛnamaya jateminɛw kan minnu sinsinnen bɛ BLE 5.0 kumaɲɔgɔnya kan, e-paper jiracogo sariyalen, ani so funteni baarakɛcogo (degere 15–25 ). Olu ye bolodacogo dantigɛliw ye minnu bɛ bɔ fɛn dilannikɛlaw ka fɛn dilannenw na ani baarakɛcogo misaliw la minnu bɛ kɛ cogoya la, u tɛ baarakɛcogo jatew garanti ye. Aw ka jaabi lakikaw bɛna ɲɔgɔn ta ka kɛɲɛ ni fɛnɲɛnamafagalan modɛli ye.

Jateminɛw kɛra minnu sinsinnen bɛ BLE 5.0 baarakɛcogo paramɛtiriw kan ani Li-MnO2 fɛnsɛbɛnniw bɔlenw kan. Aw ye aw ka ESL feerela ɲininka walasa ka modeli-dantigɛli kɛrɛnkɛrɛnnenw sɔrɔ.

Miiriya jugu min bɛ sɔrɔ mɔgɔw fɛ, o ye ko "san 10-batiri" fɔlen bɛ tali kɛ kosɛbɛ. A b’a miiri ko -frequence update schedule (1–2 tile kɔnɔ), CR2477 min bɛ se ka caya-, ani so funteni. Fiyeerekɛlaw minnu bɛ don o don laseli siraw boli, sɔngɔko fangama, walima sɔngɔko min bɛ bɛn ɲɔgɔndanna ma, olu bɛna diɲɛ ɲɛnamaya lakika-kuma surunba ye - o tɛ gɛlɛya ye, n’i y’a labɛn.

3. Cakɛda nɛnɛma: ESL batiri ɲɛnamaya yɔrɔw la minnu bɛ friji ni nɛnɛ na

Cakɛda nɛnɛma feereli - dumunikɛyɔrɔw friji kɔnɔ, furakɛli nɛnɛ marayɔrɔ, dumuniko baarakɛyɔrɔw yɔrɔw minnu bɛ sumaya - ye ESL bilali suguya dɔ ye min bɛ bonya teliya la-, wa batiri labɛnni bɛ dɔgɔya yɔrɔ min na kosɛbɛ.

Li-MnO2 chimie bɛ baara kɛ ka ɲɛ nɛnɛ na ka tɛmɛ alkaline cellules kan, nka a tɛ tanga funteni ma. Funteni dɔgɔyali bɛ kuran-sɛnɛ-wale sumaya, o bɛ dɔ bɔ seko sɔrɔli la hali ni fanga maralen ma Changé. Per performance jogo minnu ɲɛfɔlen don sanIEC 60086-4 ye(dugukolo kan sariya min bɛ litiyamu batiri fɔlɔw kan), seko marali funteni min bɛ zeru duguma, o bɛ se ka dɔgɔya kosɛbɛ ka tɛmɛ cogoya hakɛ dantigɛlenw kan.

Tiɲɛ na:

• Fɛn min bɛ kɛ nɛnɛ na (0–5℃): .Aw bɛ 75–85% ɲɔgɔn makɔnɔ so-funteni seko la. CR2450 min bɛ san duuru di ambient la, o bɛ se ka san saba fo san naani di nɔnɔ walima deli ko la.
• Nɛnɛ jugumanba (-18 degere fo -25 degere ):Seko ni dɔnko marali bɛ jigin ka se 50–60% ɲɔgɔn ma. O CR2450 kelen bɛ se ka kɛ san fila fo san saba kɔnɔ.

Ni aw bɛ ESLw sɔrɔ cakɛda nɛnɛma yɔrɔw kama, aw bɛ:

• Baarakɛcogo funteni hakɛ:ESL jɔnjɔnw bɛ jate 0 degere fo 40 degere . dakun minnu sumana , olu bɛ sɛbɛnniw de wajibiya minnu hakɛ bɛ se degere -20 ma .
• IP67 sigicogo walima a sanfɛ:Kɛnɛya bɛ Kɛ ni labeliw bɛ Taa funteni yɔrɔw ni ɲɔgɔn cɛ. IP67 sigilan bɛ ji bali ka se batiri ka fɛnw ma. An5,8" ESL yeni NFC ni IP-rated sealing ye sugandi dɔ ye min bɛ kɛ friji sigidaw la.
• CR2477 ka kɛ seli ye:Se min ka bon, o bɛ buffer di ka se ka dɔgɔya-funteni seko bɔnɛ ma. Dilanbaga dɔw bɛ selilu nɛnɛ-optimisés di ni electrolyte formulas modifiés ye deep-freeze baarakɛcogo la.

Kosɔndumunikɛyɔrɔ nɛnɛ cakɛda bilali baara la, i ka batiri si makɔnɔnen dɔgɔya ni 30–40% ye ni i y’a suma ni lamini jateminɛw ye ani k’o jate i ka ladonni waati bolodalen na kabini a daminɛ na.

4. Batiri caman cili min bɛ kɛ ni ɛntɛrinɛti ye, o musaka ye mun ye tiɲɛ na

Batiri cili ye ladonni musaka ye min bɛ segin-ka-bɔ, sannikɛlaw ka jɛkuluw bɛ min dɔgɔya tuma caman na. Jateden yɛrɛ bɛ se ka ɲɛnabɔ ka tɛmɛ sannikɛla fanba bɛ min miiri - nka a ka kan ka jate tiɲɛ na.

CR2450 selilɛri musaka bɛ se dɔrɔmɛ 0,30–0,60 ma a kelen na ni sɔngɔba ye. Ni 1000-label magasin ye, o ye $300–600 ye fɛnw na fɛn caman cili kɔnɔ - o tɛ foyi ye ka kɛɲɛ ni sistɛmu wari bilali ye. O musaka yɛrɛ ye baara ye.

ESL batiri cili bɛ a ɲini ka labeli sɔrɔ, ka so da wuli, ka selilɛri ɲɔgɔn falen, ani ka a jira ko labeli bɛ ɲɔgɔn sɔrɔ kokura. Baarakɛla ŋana min bɛ baara kɛ ka ɲɛ, o bɛ o kɛ sekɔndi 90 fo miniti fila ɲɔgɔn kɔnɔ sɛbɛn kelen-kelen bɛɛ la, ka kɛɲɛ ni sow dilanni ye ani fɛnw bilayɔrɔ sɔrɔli ye.

Jateminɛ misali min sinsinnen bɛ seli caman sɔngɔko kan ani izini baarakɛlaw ka jateminɛw kan. Aw bɛ baarakɛlaw hakɛ ni u falencogo caman ladilan ka kɛɲɛ ni aw ka sigida kɛrɛnkɛrɛnnen ye.

Walasa ka ja dafalen sɔrɔ nin bɛ bɛn cogo min na total deployment economics kɔnɔ, aw ye an ka...ESL ROI jatebɔlanani kaESL musaka tilacogo gafe.

Fɛn saba bɛ o musaka in gɛlɛya ka taa sanfɛ waleyali la: batiri kɔlɔsili tɛ kɛ (o la, baarakɛlaw bɛ waati kɛ ka dibi labeliw sɛgɛsɛgɛ sanni u ka fɛnw falenfalenni bolodalenw kɛ), cakɛda nɛnɛma hakɛ cayalenba, ani fɛnmarayɔrɔw sɔrɔli man ɲi duguma tabali kan walima frigo kɔnɔ.

5. Batiri caman cili ɲɛnabɔli magan dɔ kɔnɔ

Ka makɔnɔni kɛ fo labeliw ka dibi sani ka wale kɛ, o ye batiri ladonni fɛɛrɛ ye min sɔngɔ ka gɛlɛn kosɛbɛ - jiginni ni baarakɛcogo farati la. Label min bɛ mid-shift jirali dabila, o bɛ a dasɔngɔko sariya labatoli farati: mara caman kɔnɔ, kiliyanw ka kan sariya siratigɛ la ka sɔngɔ dɔgɔya min bɛ sɔrɔ fɛnw bilayɔrɔ sɔngɔ la ani sɛbɛnnikɛlan sɔngɔ la. Label dibiman dɔ bɛ o yɔrɔ in bɔ yen pewu.

Fɛn min bɛ se ka kɛ o nɔ na, ​​o ye ka baara kɛ ni i kaESL ɲɛnabɔli yɔrɔka batiri kɛnɛya kɔlɔsi ni timinandiya ye. Bi sitɛmu fanba bɛ sara hakɛ jira labeli bɛɛ la ɛntɛrinɛti kɔnɔ ani ka dɛmɛ don dakunw lasɔminiw ma. Aw bɛ aw ka lasɔmini sigi 20–25% seko tolen na - min bɛ dɔgɔkun damadɔ di aw ma ka taa ɲɛ sani labeli dɔ ka farati ka bɔ ɛntɛrinɛti kan.

O kunnafoniw fɛ, i bɛ se ka batch replacements (batch) kɛ ka kɛɲɛ ni shelf section ye sanni ka jaabi di dɛsɛ kelen-kelen bɛɛ ma. Fɛɛrɛ dɔ min bɛ baara kɛ ka ɲɛ waleyali la: aw bɛ magan tila ka kɛ ladonni yɔrɔ wɔɔrɔ fo seegin ye, ka yɔrɔ kelen lajɛ kalo o kalo i n’a fɔ duguma taama basigilen dɔ, ani ka taamasiyɛn o taamasiyɛn kɛ min bɛ dancɛ jukɔrɔ walasa ka fɛn wɛrɛ bila a nɔ na o taama kelen in senfɛ. O bɛ baara jɛnsɛn cogo kelen na san kɔnɔ, wa a bɛ dɛsɛba min bɛ kɛ waati kelen na, o farati ban.

Ka ɲɛsin maganw ma, labeliw bɛ yɔrɔ minnu naka fɛn kuraw kɛ i n’a fɔ a tun bɛ fɔ cogo min na, batiri hakɛ ye fɛn fɔlɔ ye min bɛ - lajɛ taamasiyɛn fanga ni dakun cogoya kɛrɛfɛ. Label min sigilen bɛ 15% charge la nɛnɛ yɔrɔ la, o bɛ se ka kɛ kaban ka ɲɔgɔndanko gɛlɛyaw jira minnu bɛ kɛ waati ni waati sanni jiralan ka dibi pewu.

6. CR2450 vs CR2032: Seli ni i ka magan bɛnni

Fiyeere ESL bilali fanba la, CR2450 ye default ye min bɛnnen don. Desizɔn min tara ka baara kɛ ni CR2032 ye o nɔ na, ​​a ka c’a la, o bɛ bɔ fɛnɲɛnamafagalanw ka gɛlɛyaw fɛ - misɛnninw-fɔcogo label minnu farikolo tɛ se ka 24,5mm selilɛri belebeleba - ladon, o tɛ kɛ ni diyanye ye.

Kɔlɔsili nafama kelen: aw kana batiri suguyaw ɲagami ɲɔgɔn na modeli kelen ka taamasiyɛnw kan ni taamasiyɛn jɛlen tɛ. CR2032 ni CR2450 selilɛriw ɲagamini sow kɛrɛfɛ, o bɛ ɲagami lase sow falenni waatiw la, wa a bɛ farati lase baarakɛlaw ma ka seli jugu don.

Tuma min na CR2477 sugandira: sigida minnu bɛ fɛn caman sɛmɛntiya (10+ sɔngɔ caman yeli tile kɔnɔ), labeli belebelew-format, walima cakɛda nɛnɛma yɔrɔ o yɔrɔ min bɛ baara kɛ degere 0 duguma . Seko ni dɔnko sɔngɔ nafa ka bon o ko kɛlenw na.

Ɲininkaliw

ESL batiriw bɛ mɛn waati joli kɔnɔ ni u kɛra ɲɔgɔn cɛ?

Fiyeere cogoya danma kɔnɔ - 1 ka se sɔngɔko 3 ma tile kɔnɔ, BLE 5.0, so funteni - CR2450 bɛna mɛn san 5 fo san 7 ɲɔgɔn. Update frequency caman walima nɛnɛba bɛna o yɔrɔ surunya. "Fo ka se san 10 ma" jate bɛ miiri ko a ka dɔgɔ-fɛrɛkan na ni CR2477 seli ye min ka seko ka bon-.

Yala magasa baarakɛlaw bɛ se ka ESL batiriw falen ni fɛɛrɛtigi tɛ wa?

Ɔwɔ, sistɛmu fanba la. ESL so fanba bɛ baara kɛ ni presse-tab walima slide cover - baarakɛminɛn si tɛ wajibiya. Label bɛ segin ka don ɛntɛrinɛti la a yɛrɛma segin damadɔ kɔnɔ fo miniti fila kɔnɔ, seli kura donna kɔfɛ. Industriw ka fɛnɲɛnamafagalan dɔw bɛ baara kɛ ni kuru kelen ye, nka o ye miniti kelen-baara ye hali bi min tɛ fɛɛrɛ kalanni wajibiya.

I b’a dɔn cogo di ni ESL batiri ka kan ka wuli?

I ka ESL ɲɛnabɔli sira fɛ, min bɛ waati lakika-batiri hakɛ fɔ labeli bɛɛ ye ɛntɛrinɛti kɔnɔ. Aw bɛ batiri lasɔmini dɔgɔman- sigi 20–25% la walasa ka kɔn ka dɔgɔkunw kunnafoni sɔrɔ, lɛrɛw tɛ. Ka labeli makɔnɔ a ka kɛ dibi ye ɲɛ na, o ye fɛɛrɛ ye min bɛ kɛ ka wale kɛ, min bɛ farati lase baarakɛcogo ni sariya labatoli ma.

Mun bɛ kɛ ni ESL batiri banna pewu?

E-paper jiralanw bɛ ja laban min jalen mara ni fanga foyi tɛ - o la labeli min banna pewu, o bɛna taa a fɛ ka sɔngɔ laban jira a ye min sɔrɔ sanni a ka kɛ yɔrɔ lankolon ye. Nka, a tɛ se ka fɛn kuraw sɔrɔ fo ni batiri jiginna. I ka ɲɛmɔgɔyaso bɛna taamasiyɛn jira iko a tɛ ɛntɛrinɛti kan, wa sɔngɔ jiralen bɛna kɛ tiɲɛ ye dɔɔnin dɔɔnin ni sɔngɔw bɛ Changé i ka sistɛmu kɔnɔ. O de y’a to kɔlɔsili min bɛ kɛ ni ɲɛmajɔ ye, o nafa ka bon ka tɛmɛ jiralan dibi la.

Yala ESL batiriw bɛ bɔ joona konfirɛziw kɔnɔ wa?

Ɔwɔ, a kɔlɔsira. CR2450 min bɛ san duuru di so funteni na, o bɛ se ka san saba fo san naani kɛ frigo kɔnɔ (0–5℃) ani san fila fo san saba kɔnɔ, nɛnɛ jugumanba kɔnɔ (-18℃). Ni tilayɔrɔ minnu sumana, aw bɛ CR2477 kɛ sɛbɛnfura dɔ kɔnɔ min jate bɛ kɛ funteni dɔgɔya-baarakɛcogo la ani ka ladonni sɛgɛsɛgɛliw labɛn ka caya - kalo saba o kalo saba sanni ka kɛ san o san.

Batiri caman cili musaka bɛɛ ye mun ye magan 1000 na san duuru kɔnɔ?

Ni an bɛ baara kɛ ni CR2450 selilɛriw ye sɔngɔba la ani baarakɛlaw ka waati miniti 1,5 ɲɔgɔn ɲɔgɔn falen-falen kelen na, san duuru{2}} kɔnɔna na, o bɛɛ lajɛlen bɛ bɛn dɔrɔmɛ 800–1,000 - ma walima dɔrɔmɛ 0,18 ɲɔgɔn labeli kelen kɔnɔ san kɔnɔ. O ka dɔgɔ ni baara bolomafara ye min bɛ sɔrɔ bolola papiye taamasiyɛn caman cili bɔli fɛ o waati kelen kɔnɔ.

Yala update frequency bɛ nɔ bila batiri ɲɛnamaya la o cogo la tiɲɛ na wa?

A ka ca ni sannikɛla fanba b’a miiri cogo min na. Label min bɛ ladamu siɲɛ kelen tile kɔnɔ, o bɛ se ka mɛn siɲɛ naani ɲɔgɔn ka tɛmɛ o label kelen kan min bɛ ladamu siɲɛ tan tile kɔnɔ batiri kelen kan. Fiyeerekɛlaw minnu bɛ baara kɛ ni sɔngɔko sigidaw ye minnu ka gɛlɛn walima minnu bɛ se ka wuli, olu ka kan ka CR2477 sugandi kabini a daminɛ na, k’u ka fɛn falenni bolodacogo sigi ka kɛɲɛ n’o ye.

Yala ESL minɛn kelen bɛ se ka baara kɛ ni batiri suguya wɛrɛw ye wa?

Ni farikolo yɔrɔw hakɛw b’a dɛmɛ dɔrɔn, o min tɛ teli ka kɛ. Label fanba dilannen don warijɛ selilɛri cogoya kɛrɛnkɛrɛnnen kelen kama. Aw bɛ bɛnkan dafa tuma bɛɛ ni aw ka fɛnɲɛnamafagalan feerela ye sani aw ka fɛn wɛrɛw komandi ka caya.

ESL batiri caman cili kan, o ye fɛn ye min bɛ se ka kɛ

Batiri cili tɛ ladonni doni ye min bɛ i n’a fɔ a fɔlɔ. Ni a bɛ se dɔrɔmɛ 0,18 ma labeli kelen na san kɔnɔ baarakɛcogo jɔnjɔn dɔ la, musaka ka dɔgɔ - nka a bɛ labɛnni de wajibiya sanni ka kɛwale kɛ. Butigi minnu b’a ɲɛnabɔ ka ɲɛ, olu de bɛ kɔlɔsili lasɔminiw sigi sen kan tile fɔlɔ la, ka fɛnw falen-falen waatibolodalenw jɔ minnu bɛ wuli ka bɔ u nɔ na, ​​ka kɛɲɛ ni zone ye, ka seli ɲuman sugandi sigida ɲuman kama sanni u ka kɛ ka kɛɲɛ ni sugandi fitinin ye.

An bɛ fili kelen min ye kosɛbɛ, o ye ka baara kɛ ni CR2032 seliw ye cɛmancɛ-ka se{2}}labelibaw la bawo u sɔngɔ ka dɔgɔn unit kelen na, o kɔfɛ, ka baara kɛ ni fɛn caman cili ye siɲɛ fila fo siɲɛ saba. O desizɔn musaka bɛɛ lajɛlen bɛ tɛmɛ warimaralen kan min tun bɛ kɛ ka kɔn o ɲɛ tuma bɛɛ.

N’i ​​bɛ ESL sitɛmuw jateminɛ ani n’i b’a fɛ k’a faamu cogo min na batiri sɛgɛsɛgɛliw bɛ baara kɛ ni i ka sɛgɛsɛgɛli kɛcogo kɛrɛnkɛrɛnnen ye ani magan labɛncogo - ka fara cakɛda nɛnɛma yɔrɔw kan - theESL ka fɛn dilannenw bɛɛ lajɛlenanibaarakɛcogo ɲɛnabɔli fɛɛrɛwɲɛw bɛ fɛnɲɛnamafagalan suganditaw ɲɛfɔ ka ɲɛ. Walasa ka baro tilennen sɔrɔ i ka poroze kan, .ɲini ka quotation dɔ sɔrɔani an bɛna baara kɛ ni aw ye configuration (labɛncogo) fɛ.
